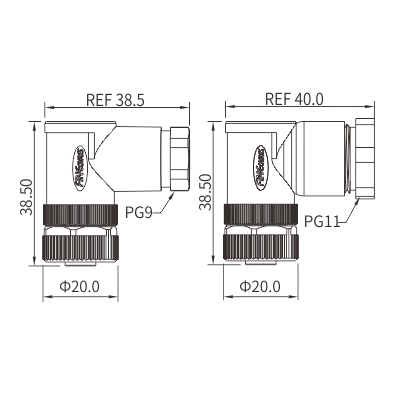

M12 Female Field Wirable Assembly, Angled, Screw joint, T-coding
M12_2021 P230-2
Part No：MB12FWTFHD**RA-X
- Specification
- Application
- Certified
Connector series: M12
Gender: Female
Coding: T
Locking type: Fix screw
Mounting type: Angled
Part No.: MB12FWTFHD**RA-X
General information
Standard: IEC 61076-2-101 Ambient temperature: -25℃ ~ +90℃ Connector insert: TPU Connector contacts: Brass with gold plated Connector body: PA+GF Coupling nut/screw: Aluminum alloy anodized Seal/O-ring: FKM Insulation resistance: ≥100MΩ Contact resistance: ≤5mΩ Shielding： Unavailable Cable gland OD: PG7: 4~6mm, PG9: 6~8mm IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Available
codingContacts
terminationRated current Voltage Wire gauge/size Cable type
& lengthA/C D/C AWG mm² 02 pins T Screw joint 12A(40℃) 630V 630V 16 1.5 Custom version
available03 pins T Screw joint 12A(40℃) 630V 630V 16 1.5 04 pins T Screw joint 12A(40℃) 630V 630V 16 1.5
Please refer to UL Certificate link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution&objid=1084511408&cfgid=1073741824&version=versionless&parent_id=1073985281&sequence=1
Please refer to UL Certificate for Canada link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV7.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution+Certified+for+Canada&objid=1084511388&cfgid=1073741824&version=versionless&parent_id=1073985283&sequence=1
