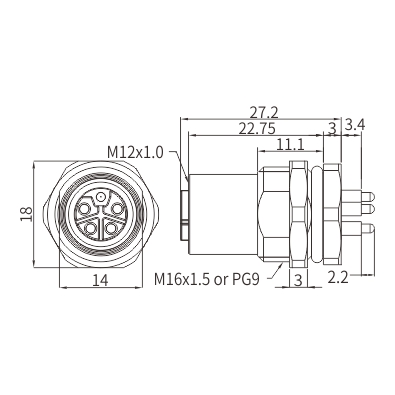

M12 Female Panel Mount, PCB Type, Front fastened, L-coding
M12_2021 P313-2
Part No：MB12FBLFF05ST-X
- Specification
- Application
- Certified
Connector series: M12
Gender: Female
Coding: L
Locking type: Fix screw
Mounting type: Front fastened
Part No.: MB12FBLFF05ST-X
General information
Ambient temperature: -25℃ ~ +90℃ Connector insert: PA Connector contacts: Brass with gold plated Coupling nut/screw: Brass/Zinc with nickel plated Seal/O-ring: FKM Insulation resistance: ≥100MΩ Contact resistance: ≤10mΩ Shielding： Unavailable IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Available
codingRated current Voltage Contacts
terminationA/C D/C 05 pins L 16A NC 63V PCB
Please refer to UL Certificate link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution&objid=1084511408&cfgid=1073741824&version=versionless&parent_id=1073985281&sequence=1
Please refer to UL Certificate for Canada link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV7.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution+Certified+for+Canada&objid=1084511388&cfgid=1073741824&version=versionless&parent_id=1073985283&sequence=1
