Push-Pull 1P Series, PNG Fixed Straight Socket, Waterproof Key(G), Contact for Printed Circuit
PUSH_PULL_2023P141-2
Part No：PNG.1P.3XX.GLNG
- Specification
- Application
- Certified
Connector series: 1P
Gender: Socket
Locking type: Self-locking
Oreentation type: Straight
Part No.: PNG.1P.3XX.GLNG
General information
Ambient temperature: -50℃ ~ +150℃ Endurance: ＞2000 cycles Insulator: PEEK Coupling nut Brass with Ni plated Connector contacts: Brass with gold plated Housing: PSU Insulation resistance: ≥100MΩ IP rating: IP64 in locked condition

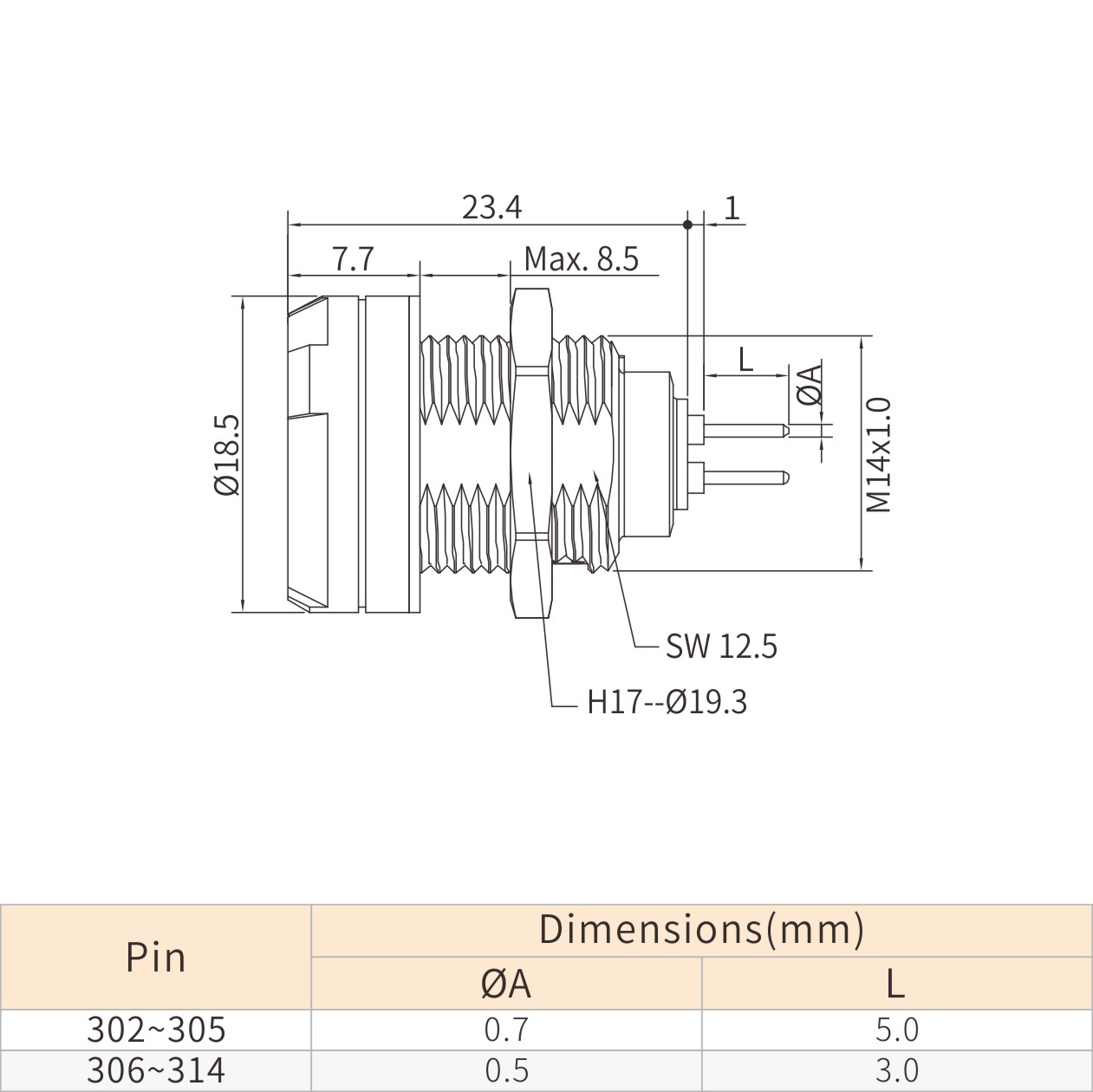

Size Dimensions(mm) A L 302~305 0.7 5.0 306~314 0.5 3.0
In the process of UL certification right now.
