Current Location： Home > Product > M12 Female Terminator, Plastic Screw

ProductsProducts

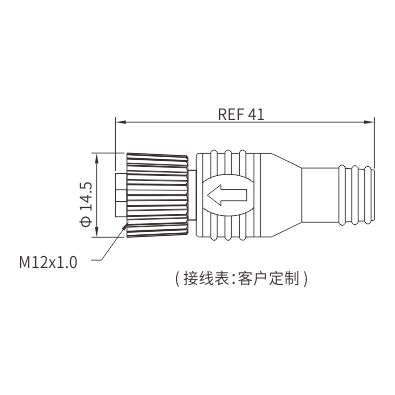

M12 Female Terminator, Plastic Screw

M12_2021 P379-2
Part No：MA12F*P**ST-T

Product Inquiry
  • Specification
  • Application
  • Certified

  • Connector series: M12

  • Gender: Female

  • Coding: A,B,C,D

  • Locking type: Plastic fix screw

  • Mounting type: Straight Terminator

  • Part No.: MA12F*P**ST-T

  • General information

    Standard: IEC 61076-2-101
    Ambient temperature: -20℃ ~ +80℃
    Connector insert: TPU/PA
    Connector contacts: Brass with gold plated
    Coupling nut/screw: PA+GF
    Connector over-mold: TPU
    Seal/O-ring: FKM
    Insulation resistance: ≥100MΩ
    Contact resistance: ≤5mΩ
    Shielding： Unavailable
    IP rating: IP67 in locked condition


    Electrical data & Mechanical data

    Contacts Available
    coding     		Rated current Voltage Contacts
    termination
    A/C D/C
    03 pins A/B/C 4A 250V 250V Solder/Crimp
    04 pins A/B/C/D 4A 250V 250V Solder/Crimp
    05 pins A/B/C 4A 60V 60V Solder/Crimp
    06 pins C 2A 30V 30V Solder/Crimp
    08 pins A 2A 30V 30V Solder/Crimp
    12 pins A 1.5A 30V 30V Solder/Crimp
    17 pins A 1.5A 30V 30V Solder/Crimp
