- Specification
- Application
- Certified

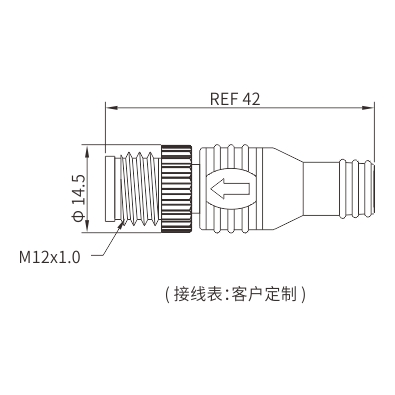

Connector series: M12
Gender: Male
Coding: A,B,C,D
Locking type: Plastic fix screw
Mounting type: Straight Terminator
Part No.: MA12M*P**ST-T
General information
Standard: IEC 61076-2-101 Ambient temperature: -20℃ ~ +80℃ Connector insert: TPU Connector contacts: Brass with gold plated Coupling nut/screw: PA+GF Connector over-mold: TPU Seal/O-ring: FKM Insulation resistance: ≥100MΩ Contact resistance: ≤5mΩ Shielding： Unavailable IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Available
codingRated current Voltage Contacts
terminationA/C D/C 03 pins A/B/C 4A 250V 250V Solder/Crimp 04 pins A/B/C/D 4A 250V 250V Solder/Crimp 05 pins A/B/C 4A 60V 60V Solder/Crimp 06 pins C 2A 30V 30V Solder/Crimp 08 pins A 2A 30V 30V Solder/Crimp 12 pins A 1.5A 30V 30V Solder/Crimp 17 pins A 1.5A 30V 30V Solder/Crimp
Please refer to UL Certificate link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution&objid=1084511408&cfgid=1073741824&version=versionless&parent_id=1073985281&sequence=1
Please refer to UL Certificate for Canada link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV7.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution+Certified+for+Canada&objid=1084511388&cfgid=1073741824&version=versionless&parent_id=1073985283&sequence=1
