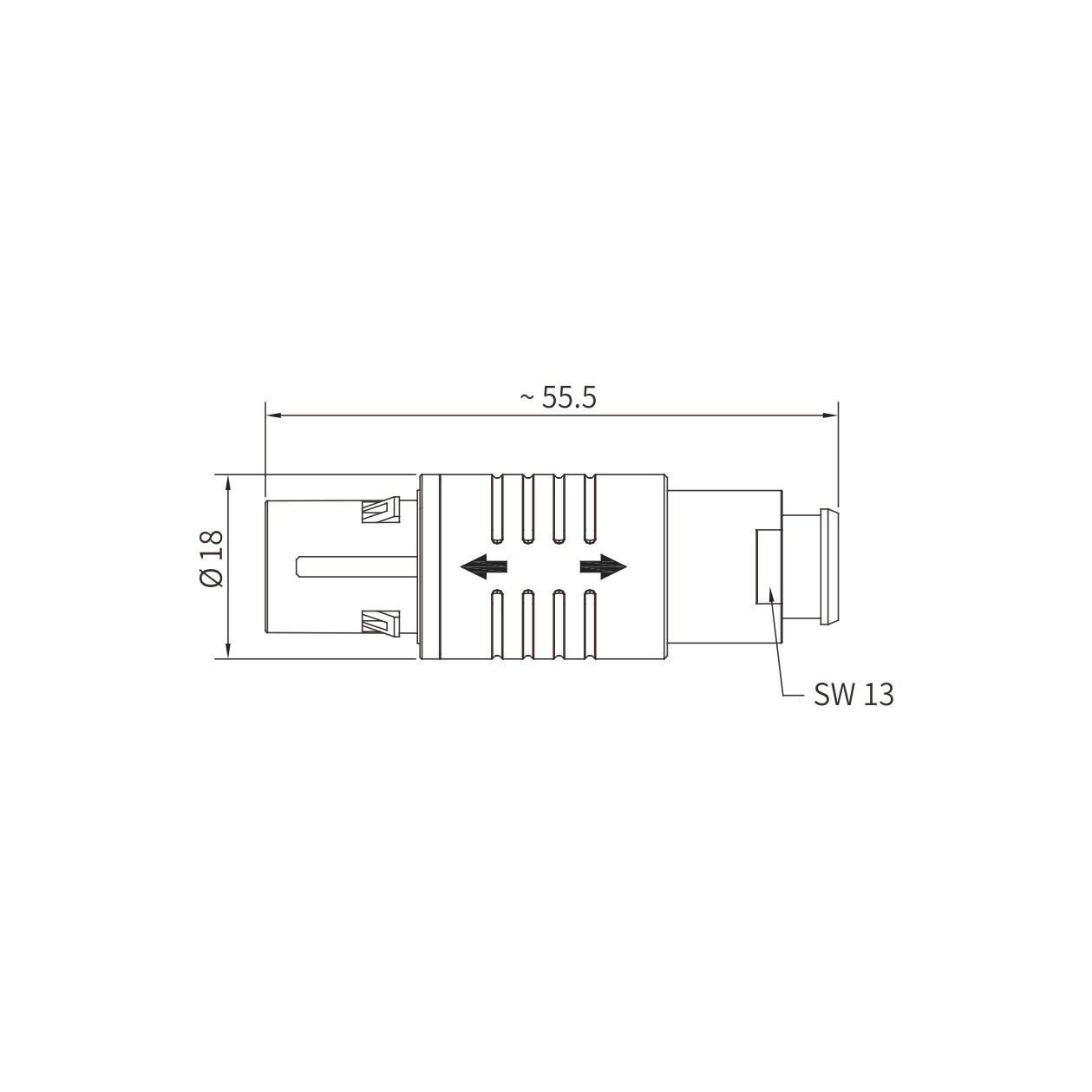

Push-Pull 2P Series, PFB Straight Plug, Waterproof, Nut for Bend Relief, Key(B), Cable Collet
PUSH_PULL_2023P144-1
Part No：PFB.2P.3XX.GLACXXGZ
- Specification
- Application
- Certified
Connector series: 2P
Gender: Plug
Coding: B
Locking type: Self-locking
Oreentation type: Straight
Part No.: PFB.2P.3XX.GLACXXGZ
General information
Ambient temperature: -50℃ ~ +150℃ Connector insert: PEEK Connector contacts: Brass with gold plated Coupling nut/screw: PSU Connector body: PSU Insulation resistance: ≥100MΩ Contact resistance: ≤5mΩ IP rating: IP66 in locked condition
In the process of UL certification right now.
