Current Location： Home > Product > M12 Male Panel Mount, Plastic ScrewNut, ...

ProductsProducts

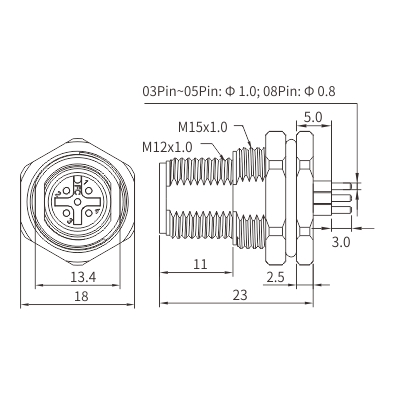

M12 Male Panel Mount, Plastic ScrewNut, PCB Type, Front fastened

M12_2021 P256-1/P275-1/P295-1/P323-1
Part No：MB12MB*FP**ST-X

Product Inquiry
  • Specification
  • Application
  • Certified

  • Connector series: M12

  • Gender: Male

  • Coding: A,B,C,D

  • Locking type: Plastic fix screw

  • Mounting type: Front fastened

  • Part No.: MB12MB*FP**ST-X

  • General information

    Standard: IEC 61076-2-101
    Ambient temperature: -25℃ ~ +90℃
    Connector insert: PA
    Connector contacts: Brass with gold plated
    Coupling nut/screw: PA+GF
    Seal/O-ring: Epoxy resin/FKM
    Insulation resistance: ≥100MΩ
    Contact resistance: ≤5mΩ
    Shielding： Unavailable
    Mount thread: M15x1.0
    IP rating: IP67 in locked condition


    Electrical data & Mechanical data

    Contacts Available
    coding     		Rated current Voltage Contacts
    termination
    A/C D/C
    03 pins A/B/C 4A 250V 250V PCB
    04 pins A/B/C/D 4A 250V 250V PCB
    05 pins A/B/C 4A 60V 60V PCB
    06 pins C 2A 30V 30V PCB
    08 pins A 2A 30V 30V PCB



Please refer to UL Certificate link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution&objid=1084511408&cfgid=1073741824&version=versionless&parent_id=1073985281&sequence=1

Please refer to UL Certificate for Canada link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV7.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution+Certified+for+Canada&objid=1084511388&cfgid=1073741824&version=versionless&parent_id=1073985283&sequence=1
