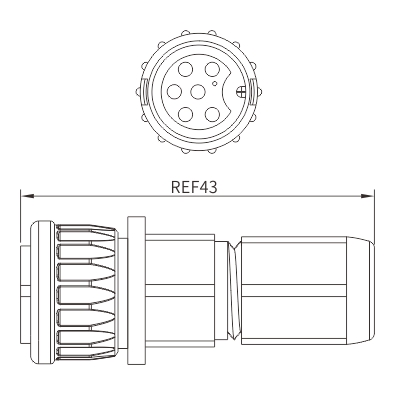

M12 Female Field Wirable Assembly, Straight, Quick-lock Type, With Fix-cap
M12_2021 P224
Part No：MB12FARAFQ**ST
- Specification
- Application
- Certified
Connector series: M12
Gender: Female
Quick-lock Fix-cap: PA+GF
Mounting type: Straight
Part No.: MB12FARAFQ**ST
General information
| Ambient temperature: | -25℃ ~ +90℃ |
| Connector insert: | PA+GF |
| Connector contacts: | Brass with gold plated |
| Connector body: | PA+GF |
| Quick-lock Fix-cap: | PA+GF |
| Seal/O-ring: | FKM |
| Insulation resistance: | ≥100MΩ |
| Contact resistance: | ≤5mΩ |
| Shielding： | Unavailable |
| Cable gland OD: | 3.0~6.0mm |
| IP rating: | IP65/IP67 in locked condition |
Electrical data & Mechanical data
| Contacts | Contacts termination | Rated current | Voltage | Wire gauge/size | Cable type & length | ||
|---|---|---|---|---|---|---|---|
| A/C | D/C | AWG | mm² | ||||
| 04 pins | Solder | 4A | 250V | 250V | 22 | 0.34 | Custom version available |
| 06 pins | Solder | 4A | 60V | 60V | 22 | 0.34 | |
Please refer to UL Certificate link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution&objid=1084511408&cfgid=1073741824&version=versionless&parent_id=1073985281&sequence=1
Please refer to UL Certificate for Canada link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV7.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution+Certified+for+Canada&objid=1084511388&cfgid=1073741824&version=versionless&parent_id=1073985283&sequence=1
