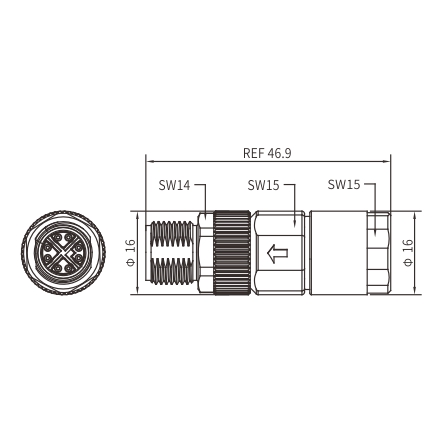

M12 Male Straight Assembly Connector, X-coding, Shielded
M12_2021 P246
Part No：MB12MPSXFF08ST
- Specification
- Application
- Certified
Connector series: M12
Gender: Male
Coding: X
Locking type: Fix screw
Mounting type: Straight
Part No.: MB12MPSXFF08ST
General information
Standard: IEC 61076-2-109 Ambient temperature: -25℃ ~ +90℃ Connector insert: PA Connector contacts: Brass with gold plated Connector body: Zinc alloy with nickel plated Coupling nut/screw: Brass/Zinc with nickel plated Seal/O-ring: FKM Insulation resistance: ≥100MΩ Contact resistance: ≤10mΩ Shielding： Available Cable gland OD: 5.5~9.0mm IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Available
codingContacts
terminationRated current Voltage Wire gauge/size Cable spec A/C D/C AWG mm² 08 pins X Piercing 0.5A 50V 60V 27~22 0.14~0.34 CAT 6A
Please refer to UL Certificate link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution&objid=1084511408&cfgid=1073741824&version=versionless&parent_id=1073985281&sequence=1
Please refer to UL Certificate for Canada link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV7.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution+Certified+for+Canada&objid=1084511388&cfgid=1073741824&version=versionless&parent_id=1073985283&sequence=1
