- Specification
- Application
- Certified

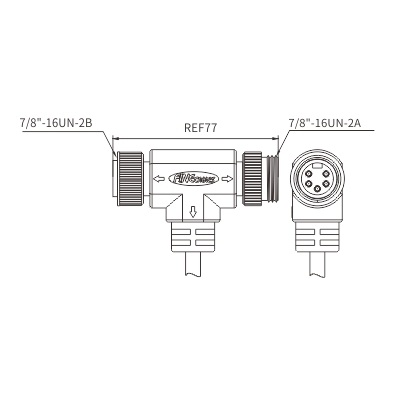

Connector series: 7/8"Mini-change
Gender: Female&Male
Locking type: Fix screw
Mounting type: T-Splitter
Part No.: MT-014
General information
Ambient temperature: -20℃ ~ +80℃ Connector insert: TPU Connector contacts: Brass with gold plated Connector over-mold: TPU Coupling nut/screw: Aluminium anodized black Conenector overmold: TPU Seal/O-ring: FKM Insulation resistance: ≥100MΩ Contact resistance: ≤5mΩ Shielding： Unavailable IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Rated current Voltage Wire gauge/size Cable
jacketWire
insulationCable ending
& lengthA/C D/C AWG mm² 05 pins 8A 300V 300V 20 0.5 PUR/PVC PVC Custom version
available
