- Specification
- Application
- Certified
Connector series: D-Sub
Gender: Male
Locking type: Fix screw
Mounting type: Front fastened

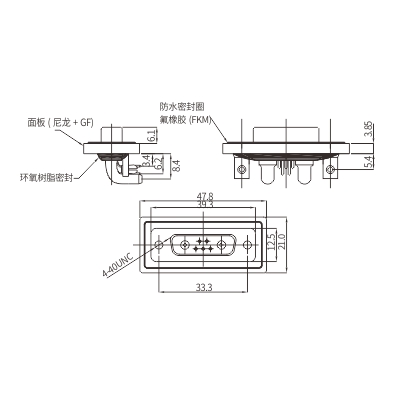

Part No.: DBW7W2MANB-A
General information
Ambient temperature: -25℃ ~ +70℃ Connector insert: PBT+GF Connector contacts: Brass with gold plated Coupling nut/screw: Brass with nickel plated Seal/O-ring: FKM Insulation resistance: ≥100MΩ Contact resistance: ≤10mΩ Shielding： Unshielded IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Rated current Voltage Contact
terminationA/C D/C 7W2 PinA1&A2 30A 300V 300V PCB 7W2 Pin1~5 5A 300V 300V PCB
