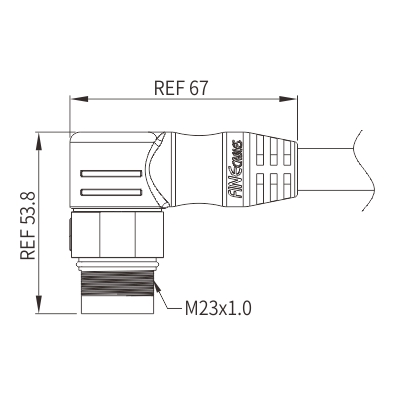

M23 Male Right Angle Power Molded Cable Connector
M23_2021 P468-1
Part No：M23-MPSPRA***-XXXX(unshielded) / M23-MPSSPRA***-XXXX(shielded)
- Specification
- Application
- Certified
Connector series: M23 Power
Gender: Male Thread
Category: Molded Cable
Locking type: Fix screw
Mounting type: Right Angled
Part No.:
M23-MPNSRA***-XXXX(unshielded)
M23-MPSSPRA***-XXXX(shielded)
（***for number of position, X for wire type and length）
General information
Seires: Power Contacts type: All Contacts: Pin Connector contacts: -20℃ ~ +80℃ Connector overmold: TPU Coupling nut: Brass with Nickel plated Available Connection type Crimp Operation cycles: >500 Insulation resistance: ≥100MΩ Contact resistance: ≤5mΩ
Electrical data & Mechanical dataContacts Rated current Voltage Wire gauge/size Wire
insulationCable ending
& lengthRated Imp. AWG mm² 6(5+PE） pins 30A 630V 6KV 14 2.0 PVC Custom version
available8(4+3+PE)pins 9;30A 250;630V 4K;6KV 18~14 1.0~2.0 PVC
Please refer to UL Certificate link:http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=ECBT2.E473386&ccnshorttitle=Connectors+for+Use+in+Data,+Signal,+Control+and+Power+Applications+-+Component&objid=1085035315&cfgid=1073741824&version=versionless&parent_id=1073749825&sequence=1
Please refer to UL Certificate for Canada link:http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=ECBT8.E473386&ccnshorttitle=Connectors+for+Use+in+Data,+Signal,+Control+and+Power+Applications+Certified+for+Canada+-+Component&objid=1085035320&cfgid=1073741824&version=versionless&parent_id=1073985991&sequence=1
