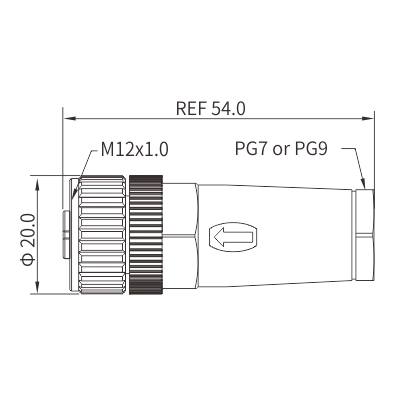

M12 Female Field Wirable Assembly, Straight, Screw joint
M12_2021 P209-2/P219-2/P242-2
Part No：MB12FW*FHD**ST-X
- Specification
- Application
- Certified
Connector series: M12
Gender: Female
Coding: A,B,D
Locking type: Fix screw
Mounting type: Straight
Part No.: MB12FW*FHD**ST-X
General information
Standard: IEC 61076-2-101 Ambient temperature: -25℃ ~ +90℃ Connector insert: TPU Connector contacts: Brass with gold plated Connector body: PA+GF Coupling nut/screw: PA+GF Seal/O-ring: FKM Insulation resistance: ≥100MΩ Contact resistance: ≤5mΩ Shielding： Unavailable Cable gland OD: PG7: 4~6mm, PG9: 6~8mm IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Available
codingContacts
terminationRated current Voltage Wire gauge/size Cable type
& lengthA/C D/C AWG mm² 03 pins A/B Screw joint 4A 250V 250V 22 0.34 Custom version
available04 pins A/B/D Screw joint 4A 250V 250V 22 0.34 05 pins A/B Screw joint 4A 60V 60V 22 0.34 08 pins A Screw joint 2A 30V 30V 24 0.25
Please refer to UL Certificate link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution&objid=1084511408&cfgid=1073741824&version=versionless&parent_id=1073985281&sequence=1
Please refer to UL Certificate for Canada link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV7.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution+Certified+for+Canada&objid=1084511388&cfgid=1073741824&version=versionless&parent_id=1073985283&sequence=1
