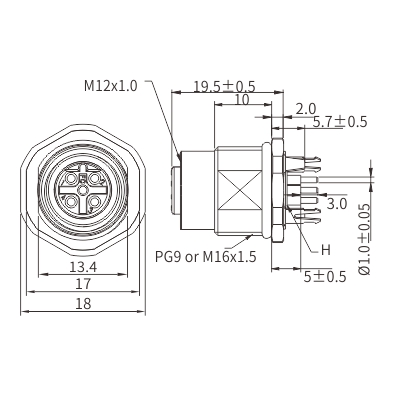

M12 Female Panel Mount, PCB Type, Front Fastened, with Earth Pin
M12_2021 P281-2
Part No：MB12FBSBFF**ST-X
- Specification
- Application
- Certified
Connector series: M12
Gender: Female
Coding: B
Locking type: Fix screw
Mounting type: Front fastened
Part No.: MB12FBSBFF**ST-X
General information
Standard: IEC 61076-2-101 Ambient temperature: -25℃ ~ +90℃ Connector insert: PA+GF Connector contacts: Brass with gold plated Coupling nut/screw: Brass with nickel plated Seal/O-ring: Epoxy resin/FKM Insulation resistance: ≥100MΩ Contact resistance: ≤5mΩ Shielding： Available Mount thread: PG9 or M16x1.5 IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Available
codingRated current Voltage Contacts
terminationA/C D/C 03 pins B 4A 250V 250V PCB 04 pins B 4A 250V 250V PCB 05 pins B 4A 60V 60V PCB
Please refer to UL Certificate link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution&objid=1084511408&cfgid=1073741824&version=versionless&parent_id=1073985281&sequence=1
Please refer to UL Certificate for Canada link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV7.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution+Certified+for+Canada&objid=1084511388&cfgid=1073741824&version=versionless&parent_id=1073985283&sequence=1
