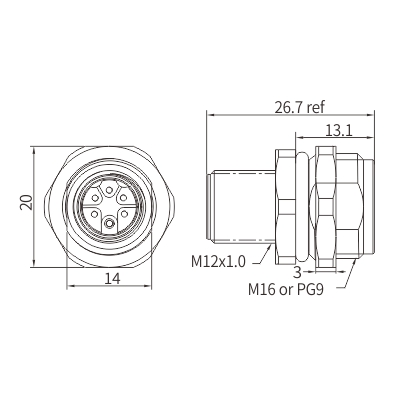

M12 Male M Coding Panel Mount, Solder&Crimp Type, Front Fastened
M12_2021 P302-1
Part No：MB12MSMFF**ST-X
- Specification
- Application
- Certified
Connector series: M12
Gender: Male
Coding: M
Locking type: Fix screw
Mounting type: Front fastened
Part No.: MB12MSMFF**ST-X
General information
Standard: IEC 61076-2-101 Ambient temperature: -25℃ ~ +90℃ Connector insert: PA+GF Connector Overmold TPU Connector contacts: Brass with nickel plated Coupling nut/screw: Brass with nickel plated Seal/O-ring: Epoxy resin/FKM Insulation resistance: ≥100MΩ Contact resistance: ≤5mΩ Shielding： Unavailable Mount thread: PG9 or M16x1.5 IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Available
codingRated current Voltage Contacts
terminationA/C D/C 06(5+PE) pins M 8A 630V 630V Solder&Crimp
