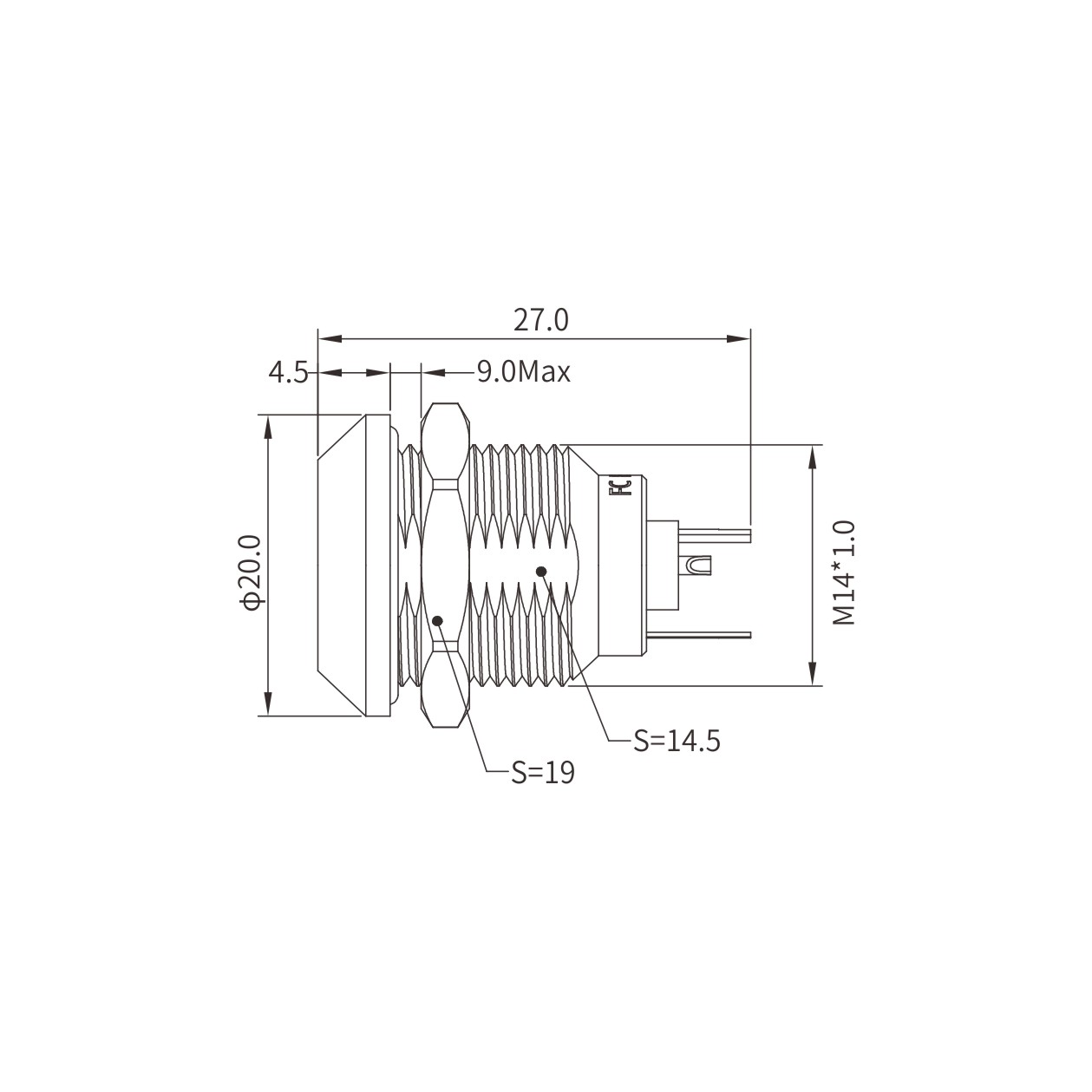

Push-Pull E Series, FSA Fixed Straight Socket, Coaxial Triaxial, Rear Fastened
PUSH_PULL_2023P106-2
Part No：FSA.1E.650.CTL
- Specification
- Application
- Certified
Connector series: E
Gender: Coaxial Triaxial
Locking type: Self-locking
Oreentation type: Straight
Part No.: FSA.1E.650.CTL
General information
Ambient temperature: -55℃ ~ +200℃ Endurance: ＞5000 cycles Connector insert: PTFE Connector contacts: Brass with gold plated Housing: Brass with Cr plated Impendace: 50Ω VSWR 1.01+0.17*f/GHz Insulation resistance: ≥100MΩ Shidelding effciency: at 10MHz＞95dB/at 1GHz＞80dB Salt spray corrosion test: ＞144h IP rating: IP68 in locked condition Shielding effciency: at 10MHzd＞95dB/ at 1GHz＞80dB
In the process of UL certification right now.
