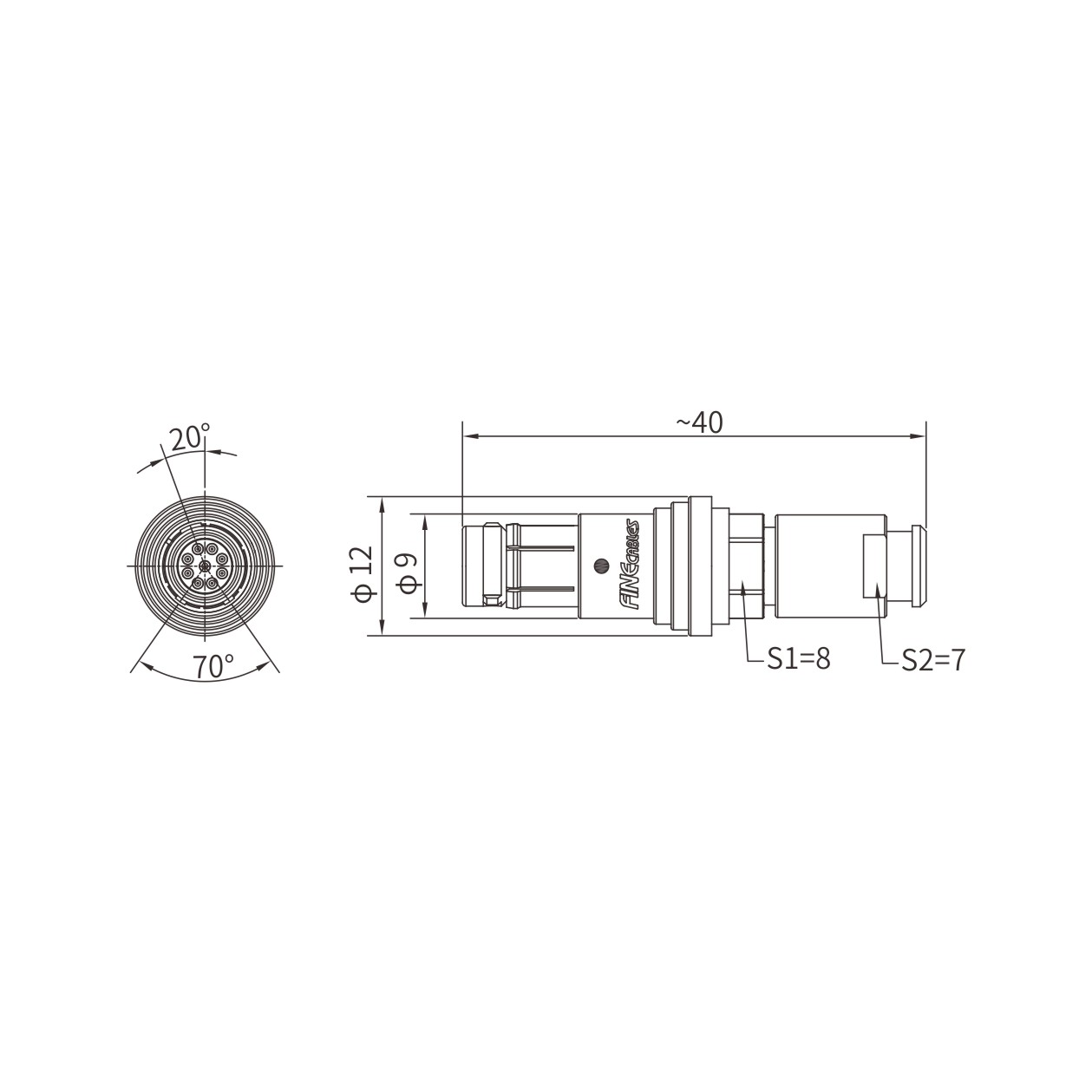

Push-Pull R Series, PSG Straight Plug, Cable Collet ( Three Keys)
PUSH_PULL_2023P128-1
Part No：PSG.0R.XXX.KLACXXZ
- Specification
- Application
- Certified
Connector series: R
Contact: Male
Locking type: Self-locking
Oreentation type: Straight
Part No.: PSG.0R.XXX.KLACXXZ
General information
Ambient temperature: -20℃ ~ +80℃ Endurance ≥3000 cycles Connector insert: PEEK Connector contacts: Brass with gold plated Connector nut/screw: Brass with Cr plated Housing: Brass with Black Cr plated Impendace: 50Ω Insulation resistance: ≥100MΩ Shidelding effciency: at 10MHz＞75dB/at 1GHz＞40dB Salt spray corrosion test: ＞144h IP rating: IP67/68 in locked condition
In the process of UL certification right now.
