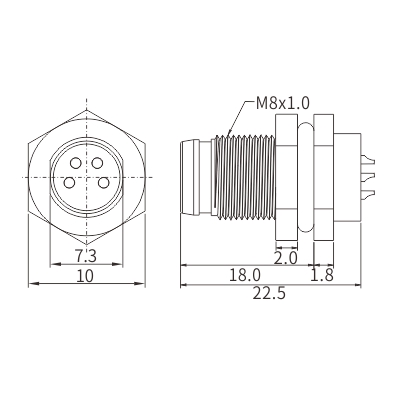

M8 Male A-coding Straight Connector, Solder Panel Mount, Contacts: 4, Unshielded, IP67 / IP65, UL Listed: CYJV(CYJV7).E321413
| Part no. | MB08MSAFI04ST |
| Standard | IEC 61076-2-104 |
| Ambient temperature | -15℃ ~ +85℃ (flexible installation) |
| Ambient temperature | -30℃ ~ +85℃ (fixed installation) |
| Customized temperature | -25℃ ~ +85℃ (flexible installation) |
| Customized temperature | -40℃ ~ +85℃ (fixed installation) |
| IP rating | IP67 in locked condition / IP65 snap in |
| Mating endurance | >500 cycles |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Shielding | no |
| Rated current | 3A |
| Rated voltage | 50V AC / 60V DC |
| Wire gauge | 0.25mm² (AWG24) |
| Connector insert | TPU |
| Connector contacts | Brass with gold plating |
| Coupling nut/screw | Zinc alloy with nickel plating |
| Seal/O-ring | Epoxy resin / FKM |
1. Do not plug or unplug the connector while it is under load. Failure to follow this warning or improper use may result in personal injury.
2. These connectors are designed for use in plant engineering, control systems, and electrical equipment construction. Users are responsible for verifying suitability if using them in other applications.
3. Connectors used in circuits with hazardous touch voltages must only be installed and operated by qualified personnel with electrical engineering training, or under their supervision, in accordance with applicable regulations and standards.
4. Users must take appropriate safety precautions to prevent accidental disconnection of the connector.
5. Please observe the specified pollution degree and overvoltage category. For more details, refer to the "Technical Information" section in our Download Center.
